20340 Coaxial Probe Assembly Kit

SKU 20340
$210.00
In stock
1
Product Details

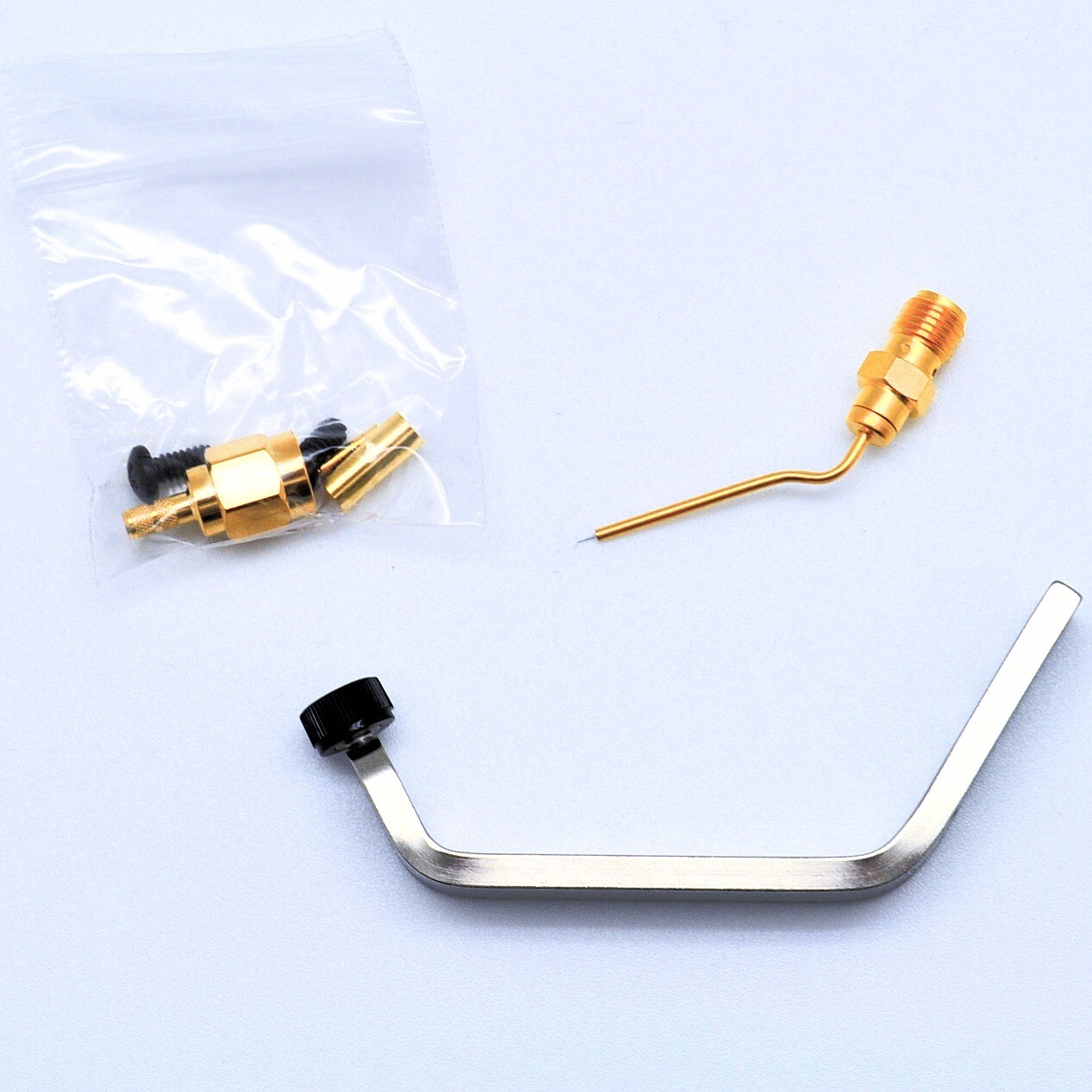

A-20340 Coaxial Probe Assembly includes: 20337 Connector, 20338 Test Probe and A-20339 Probe Holder.

The compact Coaxial Probe is adaptable to any Quater XYZ-300 and XYZ-500 positioner and it's components are made out of brass and copper with a gold plated finish. Center conductor is tungsten wire with .120 taper angle and .0005 radius contact point. Supplied A-20337 SMA connector is compatible with RG-55, 142, 223, and 400 coaxial cables.

  • RF/Microwave connector impedance: 50 Ohms
  • Frequency range: 0-18 GHz
  • Voltage rating: 500 V peak.

The A-20340 TEST PROBE Assembly is generally used in semiconductor, medical, geological and scientific applications.
