XYZ 500 Test Positioners with Screw Adjust (TLS, TRS, TIS)

SKU 500TS
$1,020.00
In stock
1
Product Details

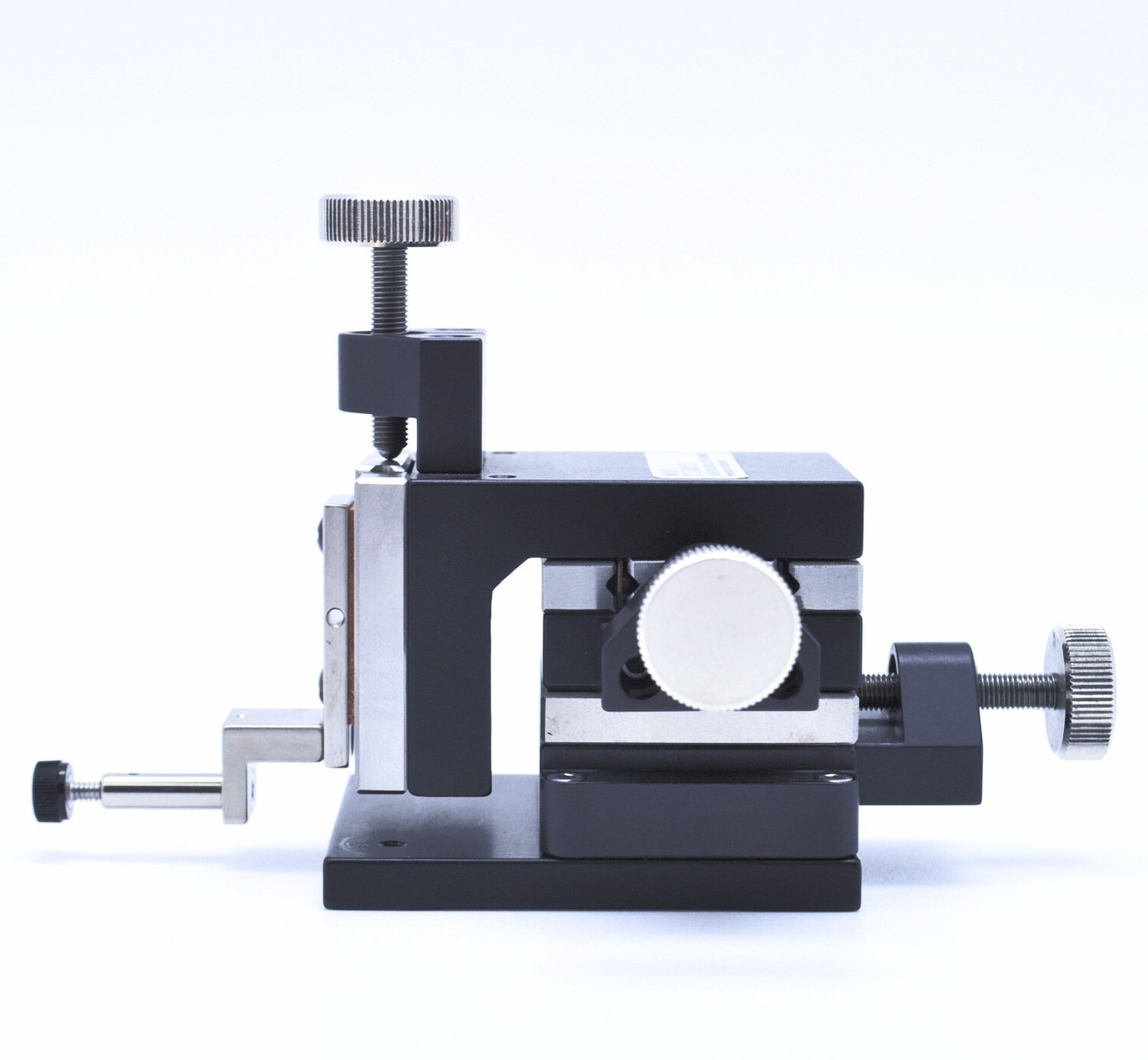

These Micropositioners are intended for probing applications in the testing and analysis of silicon wafers, substrates, and dies in the semiconductor industry. It provides 3-axis motion with .500" movement on each axis. Motion is controlled by three screw adjustment knobs available in 40, 80, or 100 threads per inch. Precision high-quality 440 stainless steel ball bearings allow precise linear motion on all three axis. Gibs and Slides are made of 440 stainless steel. Slide bases are made of aluminum anodized black. All of the units are shipped at 80 TPI unless otherwise specified.. A test positioners comes complete with magnetic base, short test arm holder and a test arm setup with a needle to do DC probing. XYZ Translation stages for the semiconductor industry.

The XYZ 500 Test micropositioner with screw adjust is available also in a Right or Left model. The test micropositioner is used for industrial, medical, biological, semiconductor, and general scientific applications. There are many front end options available to adapt to various testing applications. These translation stages are available in any combination of XYZ or just X and Y.

Specifications for XYZ 500 Micropositioner with Screw Adjustment

Height: 3.00"
Weight: Shipping weight less than 2 lb.
Base footprint: 1.50" X 2.00"
Travel: X, Y, Z axis = .500"
Resolution: .01 mm per marking on the micrometers

The XYZ 500 TIS test positioners are assembled with the following parts

  • XYZ 500 MIS
  • 20232 Magnetic Base
  • 20249 Test Arm Holder other lengths are available
  • 20235 Test Arm
  • 20242 Test Needle
  • 20241 Insulator
  • 20260 Connecting Pin

Key Benefits

  • Very fine position moves - less than one micron with motor option
  • Bearings for precise movement
  • Stable unit
  • Upgradeable
