XYZ 500 Motorized Option ( MLMT, MRMT, MLMT-C) no connectors, flags or limits

SKU 500MMT
$2,220.00
In stock
1
Product Details

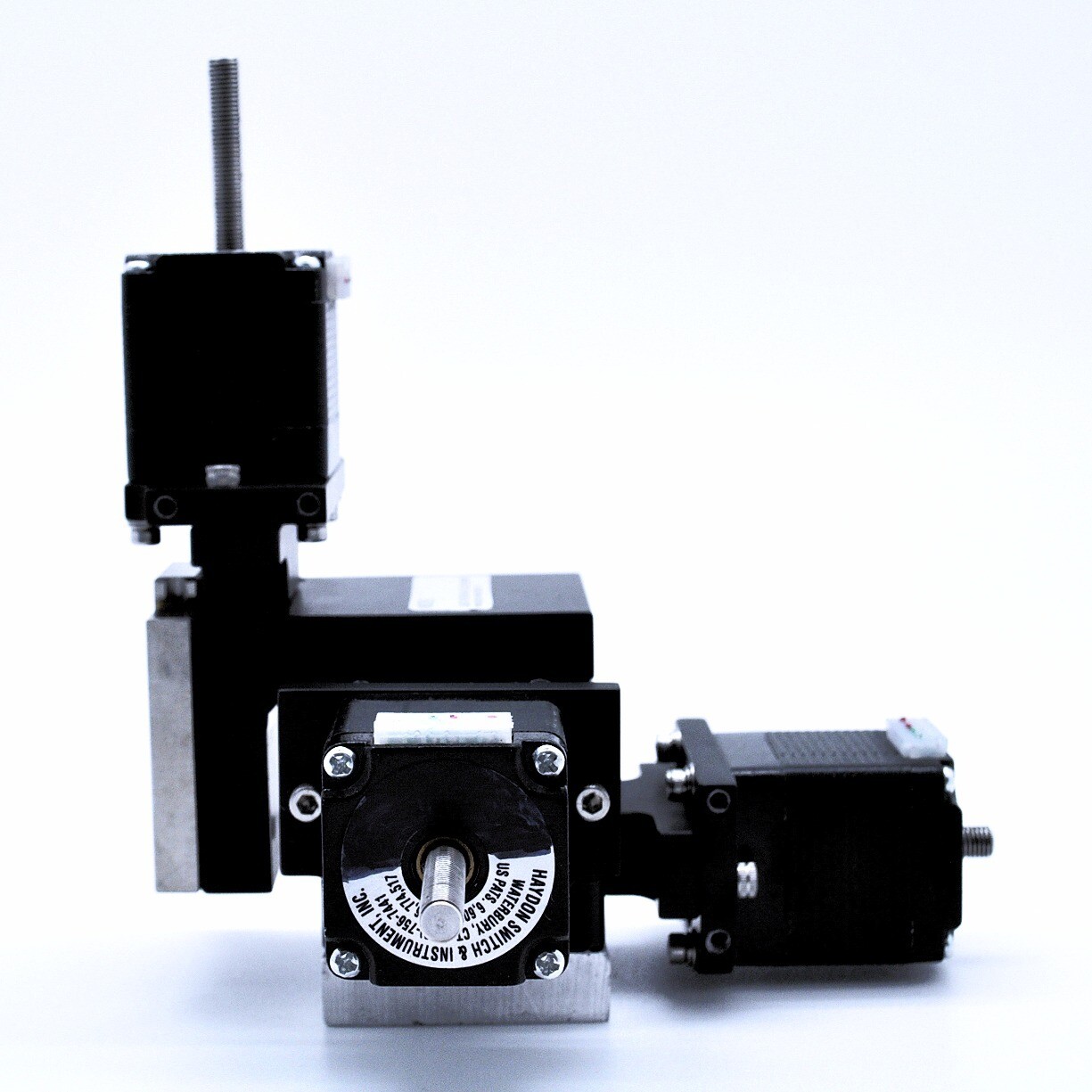

The XYZ-500-MLMT & MRMT Micropositioner is intended for precise probing and instrumentation for industrial, medical, biological, semiconductor, and general scientific applications. It provides 3-axis motion with .500" movement on X , Y and Z. Motion is controlled by three precision stepping motors directly attached to our fabricated stainless slides. Precision high quality 440 stainless steel ball bearings (cross roller bearings also available) allow precise linear motion on all three axis. Gibs and Slides are made of heat treated, ground, 440-C stainless steel. Slide bases are made of dense aluminum with a black anodized finish. (Provisions for optical sensors)

Specifications for XYZ 500 MLMT/MRMT Micropositioner with Motorized Option

Height: 4.60"
Weight: Shipping weight less than 2 lb.
Base footprint: 1.50" X 2.00"
Travel: X, Y, Z axis = .500"
Resolution: 0.000125" (.003175 mm) per step
Motors: 5vdc, .42amp, Bipolar

Drawings for the XYZ 500 series micropositioners

Key Benefits

  • Very fine position moves - less than one micron with motor option
  • Bearings for precise movement
  • Stable unit
  • Upgradeable

The XYZ-250-MLMT-C is connectorized using (12” long leads)
- SOCKET RECEPTACLE (AMP 104257-3)
- SOCKETS (AMP 104480-9)
- SHRINK TUBING 1/8” BLACK
- EXPANDABLE SLEEVING 1/8” BLACK
- LABEL PART NUMBER AND AXIS WITH LAMINATED LABEL
PIN 1: RED COLOR WIRE - MOTOR A+
PIN 2: RED/WHITE WIRE - A COMMON
PIN 3: GREEN WIRE - MOTOR B+
PIN 4: GREEN/WHITE WIRE - B COMMON
WITH OPTICAL SENSORS AND FLAGS for 1/4" travel x and y, 1/2" for z
